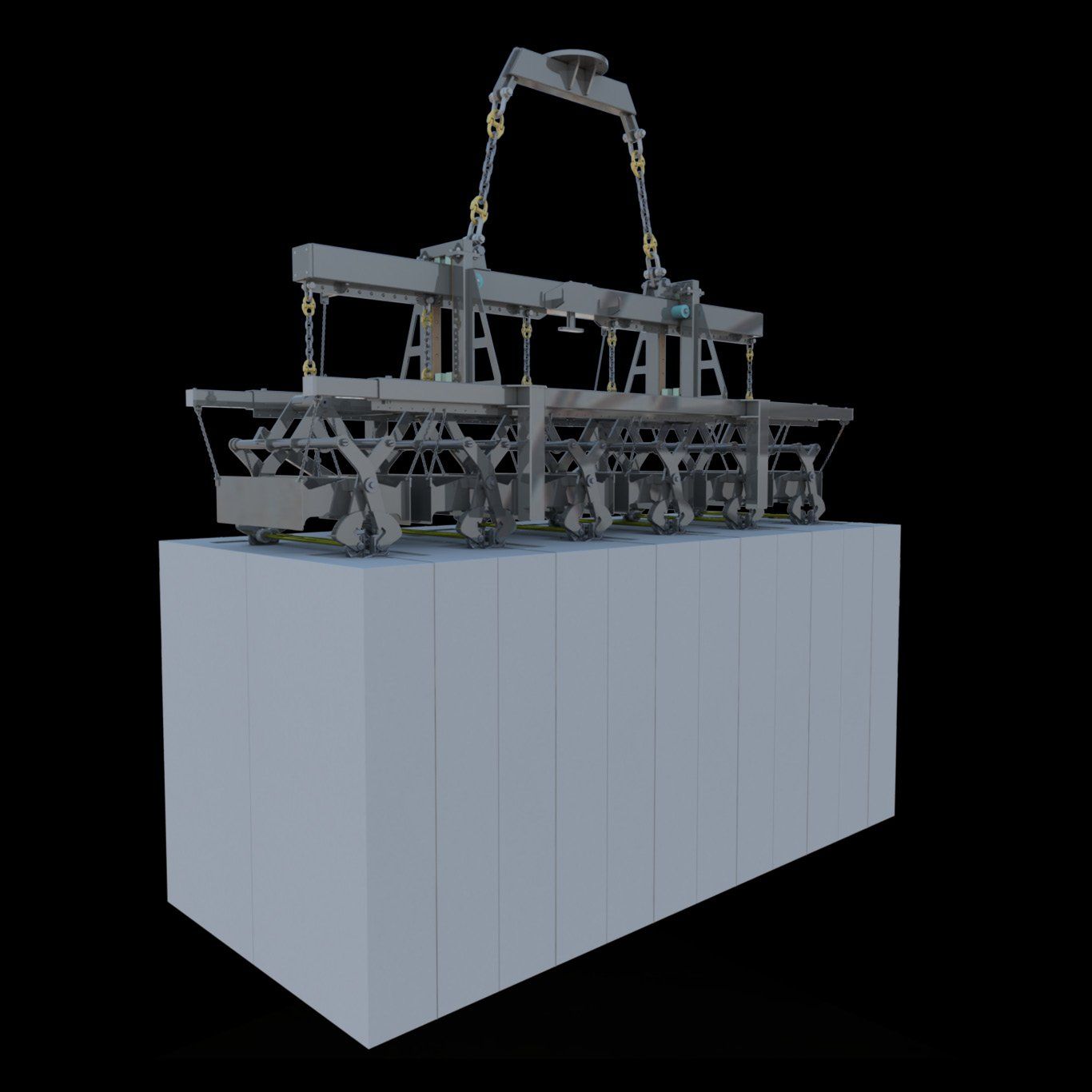

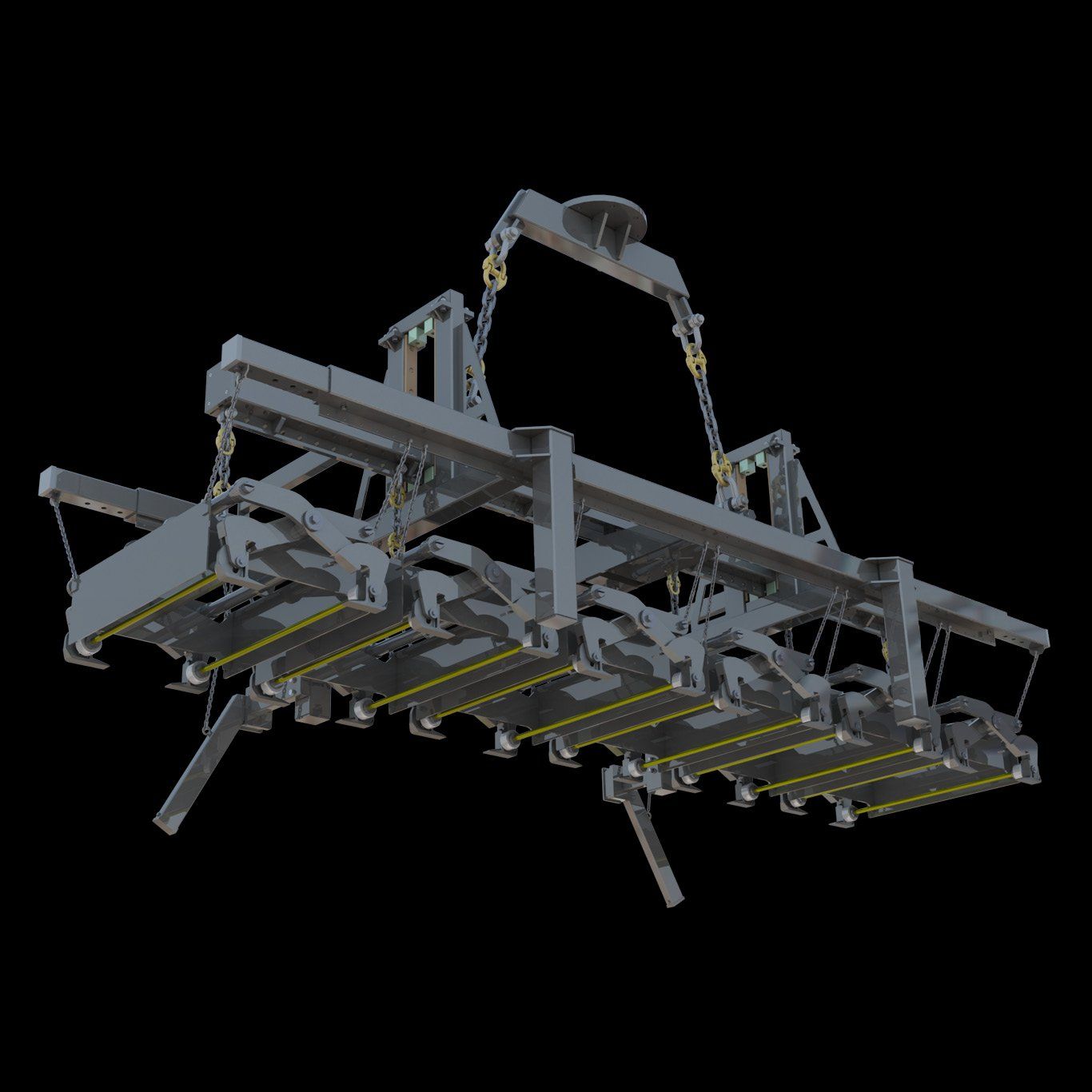

Ganterud Automatic Bale Spreader

• Continuous hook-up and release of Unitizing wires.
• Operates independently of climatic conditions.
• Time saving lifting equipment.
• Faster vessel loading and unloading.
• Self-aligning on pulp units.
• All mechanical system.
• Enhances dock safety.
• No pulp contamination.

Technical data

6 Spreader

Material:

S355J2+N

Surface treatment:

Heat Galvanized

Weight:

6 Spreader: 2200 kg (4 851 lbs)

Height:

6 Spreader: 1 700 mm

Length:

6 Spreader: 4 300mm

Width:

6 Spreader: 1 200mm

Attachment interface:

The Spreader is automatic mechanical and has no demands for electricity, pneumatic or hydraulic accessories.

Load capacity:

6 x 2 000 kg (4409 lbs)

Technical data

8 Spreader

Material:

S355J2+N

Surface treatment:

Heat Galvanized

Weight:

8 Spreader 3000 kg (6613 lbs)

Height:

8 Spreader 1 700 mm

Length:

8 Spreader 6 100mm

Width:

8 Spreader 1 200mm

Attachment interface:

The Spreader is automatic mechanical and has no demands for electricity, pneumatic or hydraulic accessories.

Load capacity:

8 x 2 000 kg (4409 lbs)

Load capacity per hour dependent of type of crane:

Min 60 000 kg (132 300 lbs)

Fulfils European and US safety standards

Note: The datas noted varies because of handled objects and customer demands. Pulp Spreaders with more loading capacity on demand.
