Introducing the Ganterud L20-3 Pro: The advanced levelling yoke
Experience the power of robust and proven technology with the Ganterud L20-3 Pro. This radio-controlled precision levelling device revolutionizes installation processes by reducing time and enhancing safety, boasting a capacity of up to 20 tonnes.
Efficient handling of light and heavy loads
The GANTERUD L20-3 Pro levelling yoke combines innovative and established technology to manage loads with exceptional precision and safety. It is versatile, handling objects from 0 kg to 20 tonnes effortlessly.
Automatic levelling and safe rotation
Featuring an auto-levelling function, this device easily identifies the center of gravity, simplifying the lifting process. The snatch block function with a released chain wheel ensures safe and quick rotation of heavy items like prefabricated concrete walls.
Versatile and precise object handling
With a reversible chain reaching up to 3 meters per hook standard length, the GANTERUD L20-3 Pro delivers accurate and wide-ranging levelling and handling capabilities for various objects. The length of the chain can be adjusted according to needs.
Boosts productivity significantly
The GANTERUD L20-3 Pro enhances productivity by allowing easy and safe object levelling with the push of a button, cutting down on costly crane time and reducing wait times.
Durable and reliable performance
Built with robust technology and reliable electrical operation, the GANTERUD L20-3 Pro performs in temperatures ranging from -20°C to +40°C, making it ideal for demanding environments.
Easy maintenance
The sturdy, welded casing and IP65-rated electrical system ensure easy cleaning. The only required maintenance is weekly battery charging, with status conveniently displayed on the yoke.
PRO FEATURES:
- Release of chain wheel with remote control.
- Snatch block function with released chain wheel.
- Flash light warning when chain wheel is released.
- Auto levelling, finds the center of gravity automatically when chain wheel is released.

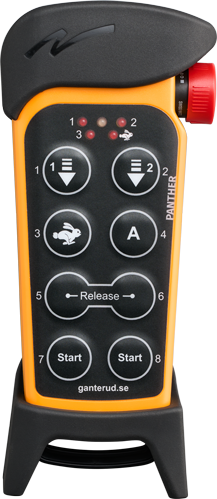

User-Friendly radio control
The IP67-rated remote control makes the GANTERUD L20-3 Pro easy to operate, enhancing productivity and safety with its intuitive design.
INCREASES PRODUCTIVITY RATE MANY TIMES OVER
The GANTERUD L20-3 Pro levels the objects it is lifting quickly and safely with the simple press of a button, reducing both expensive crane time and waiting times.
Built in Sweden. Trusted Worldwide.
Whether you’re installing precast concrete walls, steel beams, or industrial machinery, Ganterud technology saves valuable crane time and reduces manual handling risks.
For over three decades, Ganterud has designed and manufactured intelligent Levelling Devices for demanding industrial lifting.
Every unit is built for precision, durability, and ease of use – helping operators lift, level, and rotate heavy components safely and efficiently.
- Release of chain wheel with remote control
- Snatch block function
- Auto levelling when chain wheel is released
- Levelling light and heavy objects
- Runs on rechargeable batteries
- Sturdy, durable and reliable
- Increases productivity
- Strong and robust
- Minimal service
- Radio controled
Technical data
Lifting capacity: Max 20 tonnes
Load imbalance capacity: Max 3 tonnes
Max leveling length: 3 m
Max chain angle: 60°
Chain dimension: 60.5x20 mm
Total chain length: 6 m
Weight: 395 kg

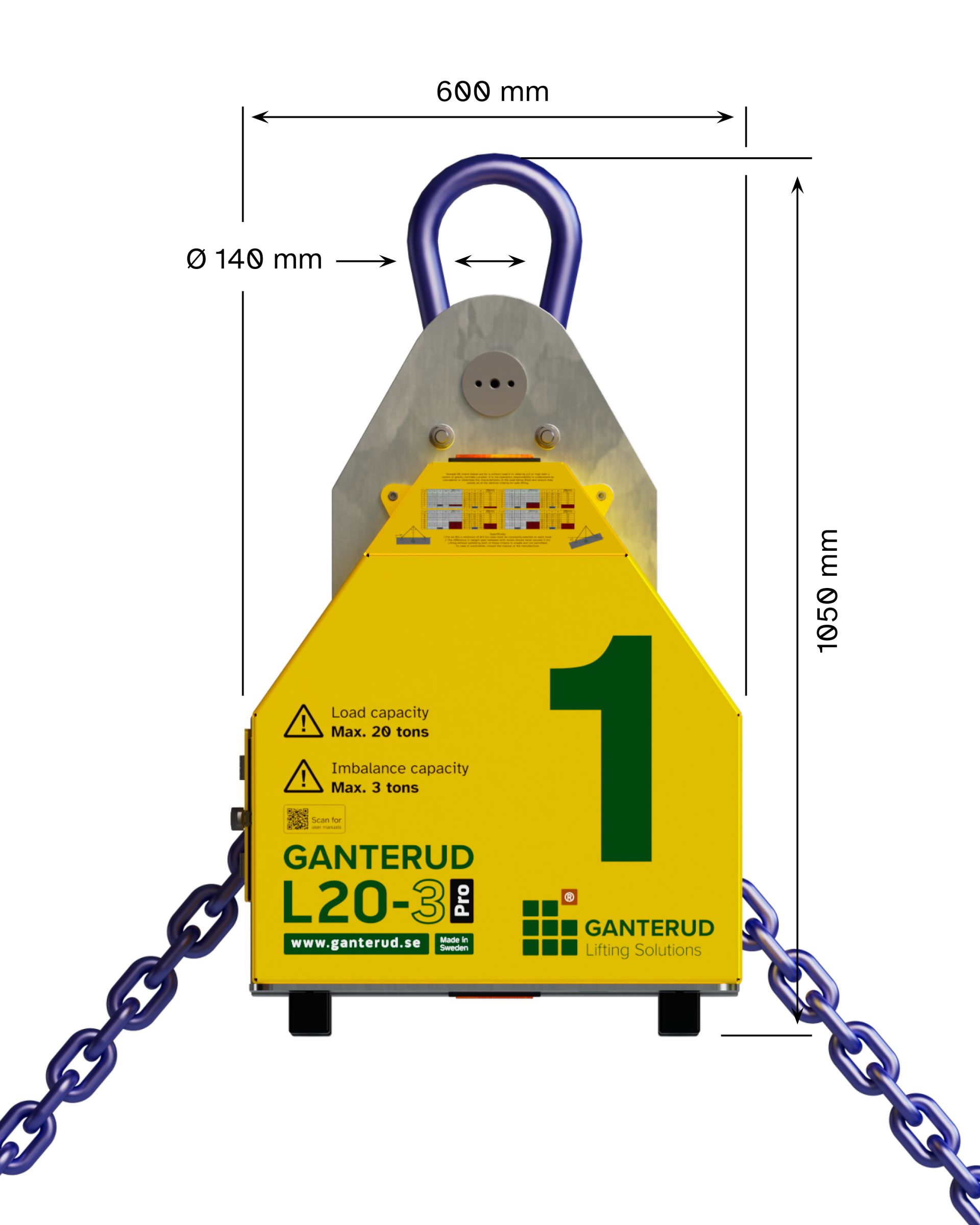

Height: 1050 mm

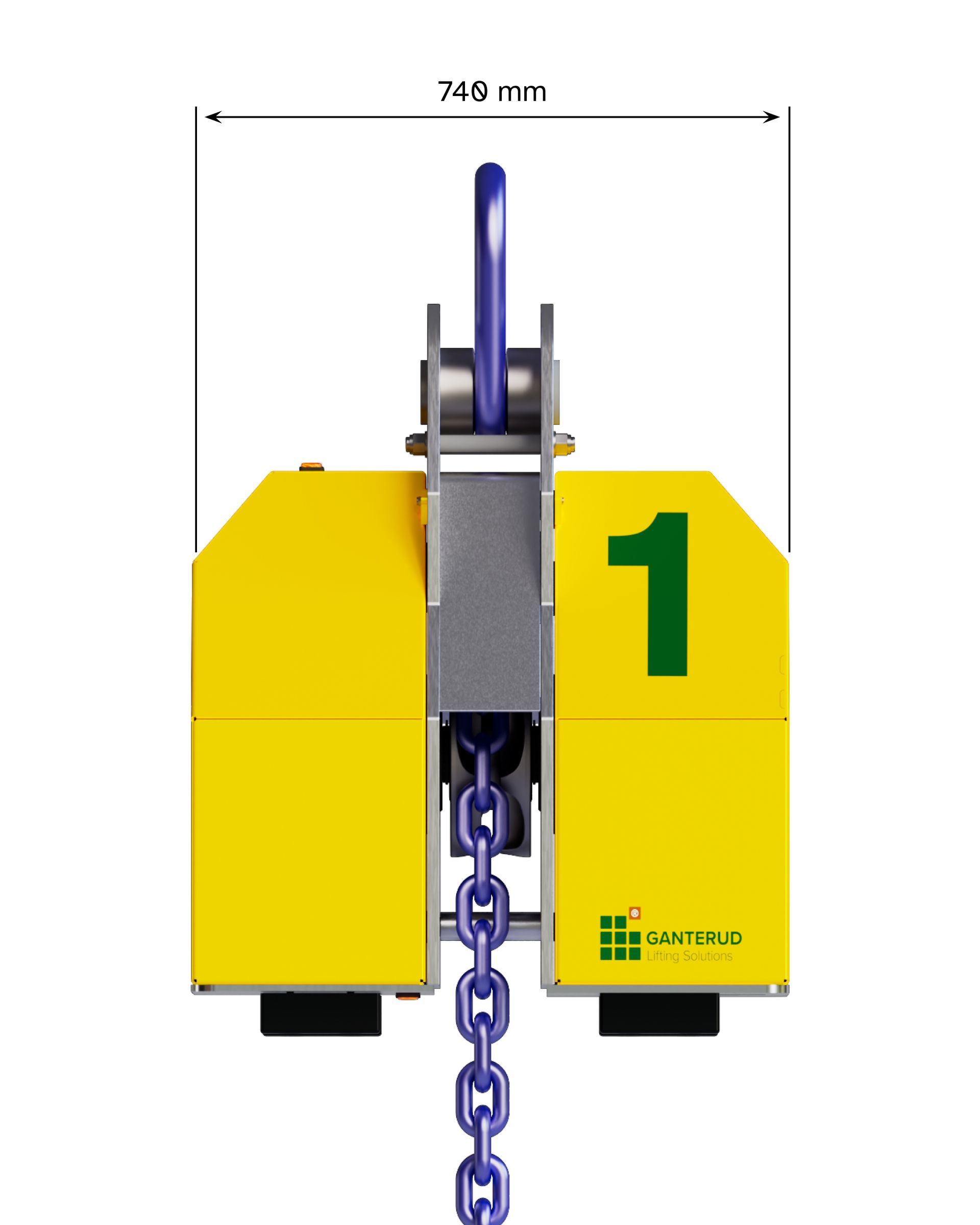

Width: 740 mm
Depth: 600 mm
Control system
Radio range: 100 m unobstructed view
Current electrical motor: 24 VDC
Power at rest: 50 mA
Power max continuous: 60 A
Power peak: 100 A
Environmental requirements
Operating temperature: -20°c - +40°c
Storage temperature: -20°c - +45°c
Relative Humidity (RH): 0 - 90 % when stored
IP rating: Ip65
Hand - held controller
Number of function keys: 7
Power output: 10 mW
Power supply: 3x1,5v AAA
Ip rating: Ip67
CERTIFICATION
CE marked product
Optional extra equipment
Protective cover
Extended chain
Extra batteries
Transport packaging
