Ganterud L50 Heavy Duty – 50 Tonnes Industrial Levelling Device
Meet the Ganterud L50 Heavy Duty, a powerful levelling device designed for the most demanding lifting and levelling operations.
With a lifting capacity of up to 50 tonnes, this model is engineered for large-scale industrial applications where strength, stability, and precision are critical.
- Heavy steel structures
- Offshore and marine installations
- Industrial machinery handling
- Infrastructure and large-scale construction projects
Why Choose L50 Heavy Duty?
- For extreme loads up to 50 tonnes.
- When maximum strength and stability are required.
- For complex lifts involving heavy imbalance.
- When operating in demanding industrial environments.
- When reliability and long service life are essential.
Accurate and versatile object handling.

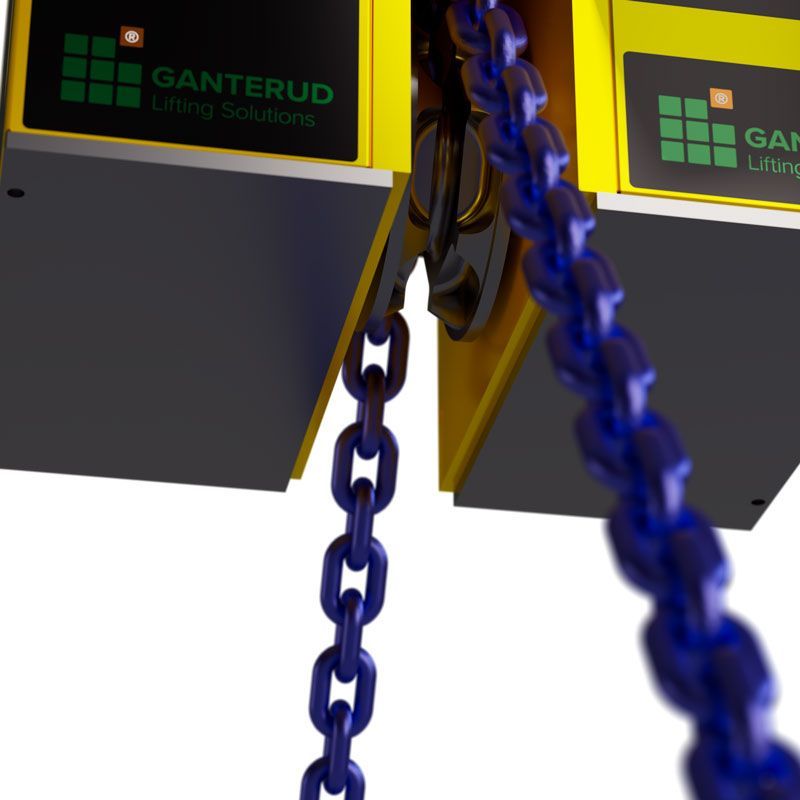

The GANTERUD L50 HD features a reversible chain of up to 6 meters per hook, ensuring precise and flexibel levelling and handling for wide range of objects. The length of the chain can be adjusted as needed.
Applications & Benefits
The Ganterud L50 Heavy Duty is developed for operations where standard lifting equipment is not sufficient.
It is particularly suited for:
- Heavy steel structures
- Offshore and marine installations
- Industrial machinery handling
- Infrastructure and large-scale construction projects
By allowing precise levelling and controlled rotation of heavy loads, the L50 reduces crane time, improves positioning accuracy, and enhances overall site safety.
Built for tough conditions
With its robust and proven technology, the GANTERUD L10 HD delivers reliable performance in temperatures from -20°C to +40°C, making it ideal for demanding environments.
Minimal maintenance required
The sturdy casing, along with the IP65-rated electrical system, make the GANTERUD L50 HD easy to clean and highly resistant to dust and water.

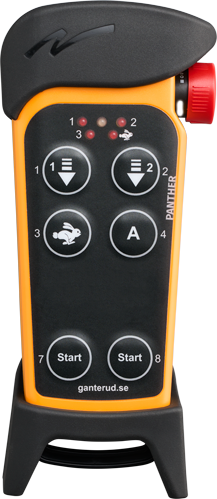

User-Friendly radio control
The IP67-rated remote control makes the GANTERUD L50 Heavy Duty easy to operate, enhancing productivity and safety with its intuitive design.
INCREASES PRODUCTIVITY RATE MANY TIMES OVER
The GANTERUD L50 Heavy Duty levels the objects it is lifting quickly and safely with the simple press of a button, reducing both expensive crane time and waiting times.
Built in Sweden. Trusted Worldwide.
Whether you’re installing precast concrete walls, steel beams, or industrial machinery, Ganterud technology saves valuable crane time and reduces manual handling risks.
For over three decades, Ganterud has designed and manufactured intelligent Levelling Devices for demanding industrial lifting.
Every unit is built for precision, durability, and ease of use – helping operators lift, level, and rotate heavy components safely and efficiently.

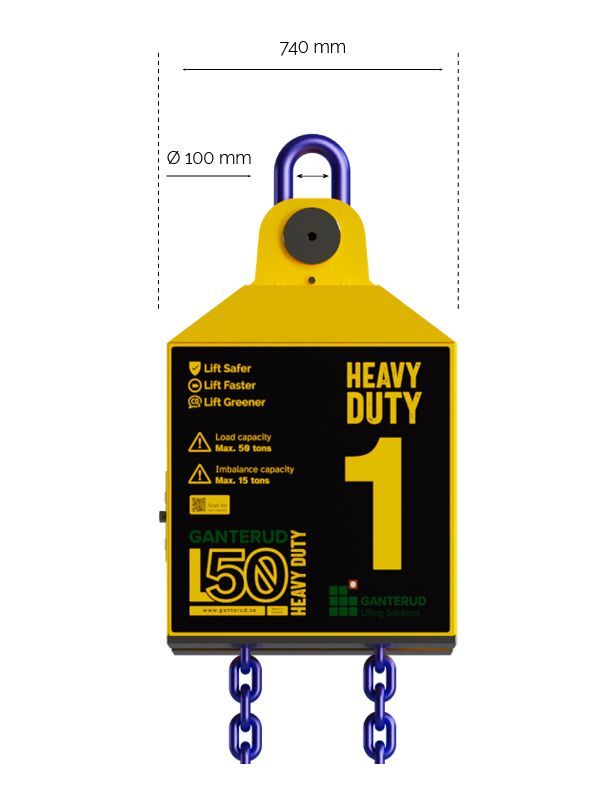

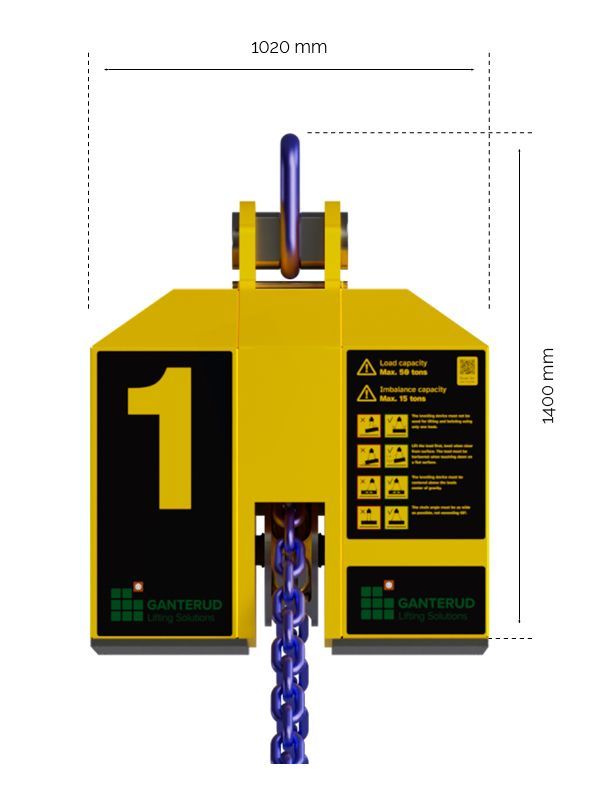

Technical data
Load capacity: Max 50 tons
Load imbalance capacity: <15 tons
Max levelling length: 3 + 3 m
Max chain angle: 60°
Chain dimension: 32x96 mm
Total chain length: 6 m
Weight: 1400 kg
Height: 1400 mm
Width: 1020 mm
Depth:740 mm
Control system
Radio range: 100 m unobstructed view
Current electrical motor: 48 VDC
Power at rest: 50 mA
Power max continuous: 30 A
Power peak: 60 A
Environmental requirements
Operating temperature: -20°c - +40°c
Storage temperature: -20°c - +45°c
Relative Humidity (RH): 0 - 90 % during storage
IP rating: Ip65
Hand - held controller
Number of function keys: 8
Power output: 10 mW
Power supply: 3x1,5v AAA
Ip rating: Ip67
CERTIFICATION
CE marked product
Optional extra equipment
Protective cover
Extended chain
Extra batteries
Transport packaging
