Introducing the Ganterud L5 Pro: Precision levelling yoke for versatile application

Discover the Ganterud L5 Pro, a robust levelling device that incorporates time-tested technology for new application. This radio-controlled precision levelling device minimizes installation time and enhances safety, with a capacity of up to 5 tonnes.

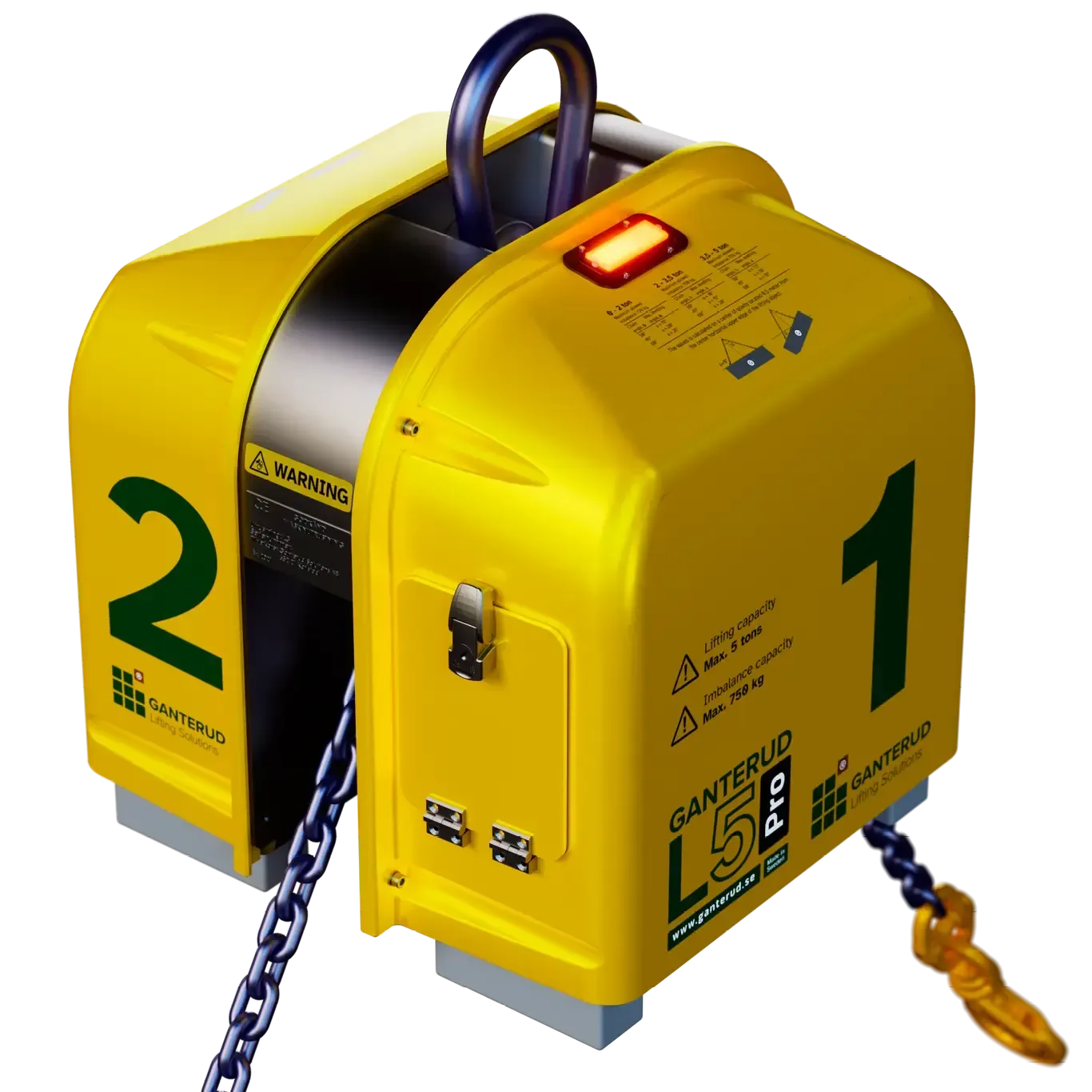

Top view of the Ganterud L5 Pro Lifting yoke

Handling both light and heavy loads with ease

The GANTERUD L5 Pro levelling yoke leverages both new and proven technology to manage loads efficiently and safely, accommodating objects from 0 kg to 5 tonnes.


Automatic leveling and efficient rotation

The auto-levelling feature makes it simple to locate the center of gravity, facilitating easy and safe lifting. The snatch block function with a released chain wheel allows for the swift and secure rotation of heavy items, such as horizontally delivered prefabricated concrete walls.


Accurate and versatile object handling.

The GANTERUD L5 Pro offers a reversible chain of up to 1.5 meters per hook, ensuring precise and wide-ranging leveling and handling for various types of objects. The length of the chain can be adjusted according to needs.

Enhanced productivity

The GANTERUD L5 Pro improves productivity by enabling safe and easy object levelling with a button press, reducing both crane operation costs and wait times.


Built for tough conditions

With its robust and proven technology, the GANTERUD L5 Pro operates reliably in temperatures from -20°C to +40°C, suitable for demanding environments.



Minimal maintenance required

The sturdy casing, along with the IP65-rated electrical system, means that the GANTERUD L5 Pro is easy to clean.


Minimal service

The sturdy casing and IP65-rated electrical system facilitate easy cleaning. Regular maintenance involves only weekly battery charging, with status displayed on the yoke.

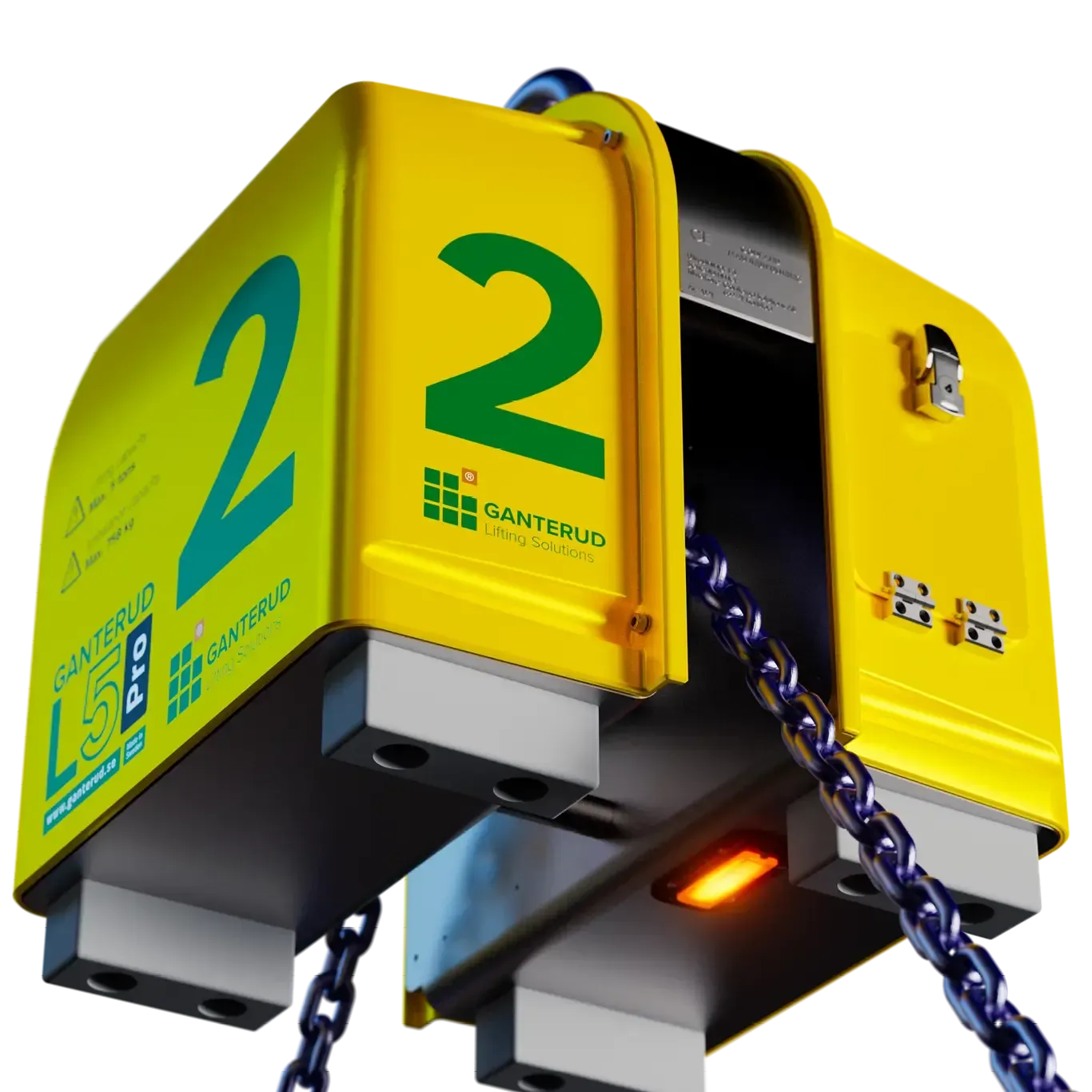

Bottom view of the Ganterud L5 Pro Lifting yoke
The Ganterud L5 Pro Lifting yoke Remote control

PRO FEATURES:

  • Release of chain wheel with remote control.
  • Snatch block function with released chain wheel.
  • Flash light warning when chain wheel is released.
  • Auto levelling, finds the center of gravity automatically when chain wheel is released.


Convenient radio control

Equipped with an IP67-rated remote control, the GANTERUD L5 Pro is user-friendly, enhancing both safety and productivity.

INCREASES PRODUCTIVITY RATE MANY TIMES OVER

The GANTERUD L5 Pro levels the objects it is lifting quickly and safely with the simple press of a button, reducing both expensive crane time and waiting times.

  • Release of chain wheel with remote control
  • Snatch block function
  • Auto levelling when chain wheel is released
  • Levelling light and heavy objects
  • Runs on rechargeable batteries
  • Sturdy, durable and reliable
  • Increases productivity
  • Strong and robust
  • Minimal service
  • Radio controled

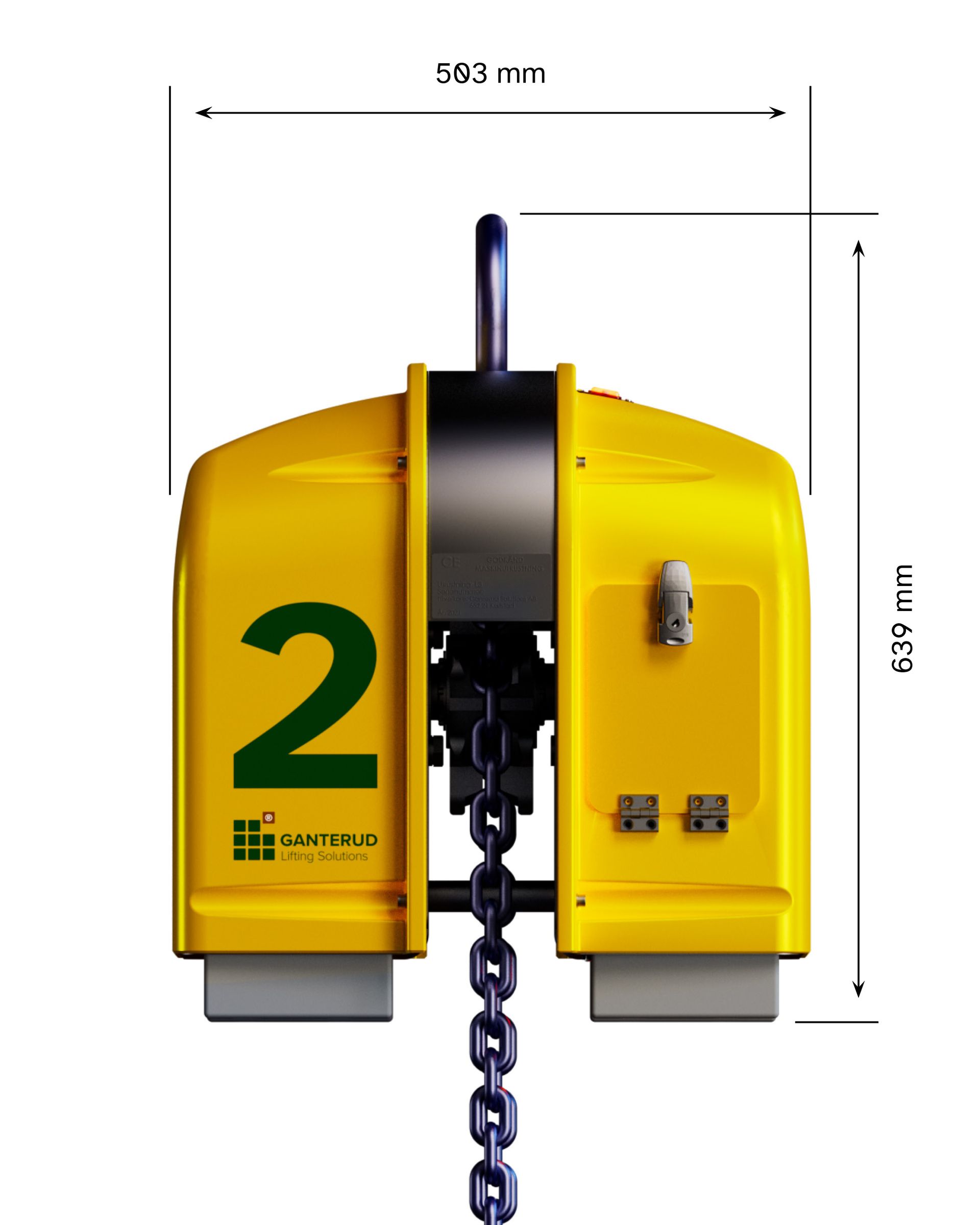

Ganterud L5 Pro Lifting yoke measurements

Technical data

Lifting capacity: Max 5 metric tonnes

Load imbalance capacity: Max 750 kg

Max leveling length: 1,5 m

Max chain angle: 60°

Chain dimension: 30,5x10 mm

Total chain length: 3 m


Weight: 126 kg

Height: 638 mm

Width: 503 mm

Depth: 495 mm

Control system

Radio range: 100 m unobstructed view

Current electrical motor: 24 VDC

Power at rest: 50 mA

Power max continuous: 24 A

Power peak: 30 A

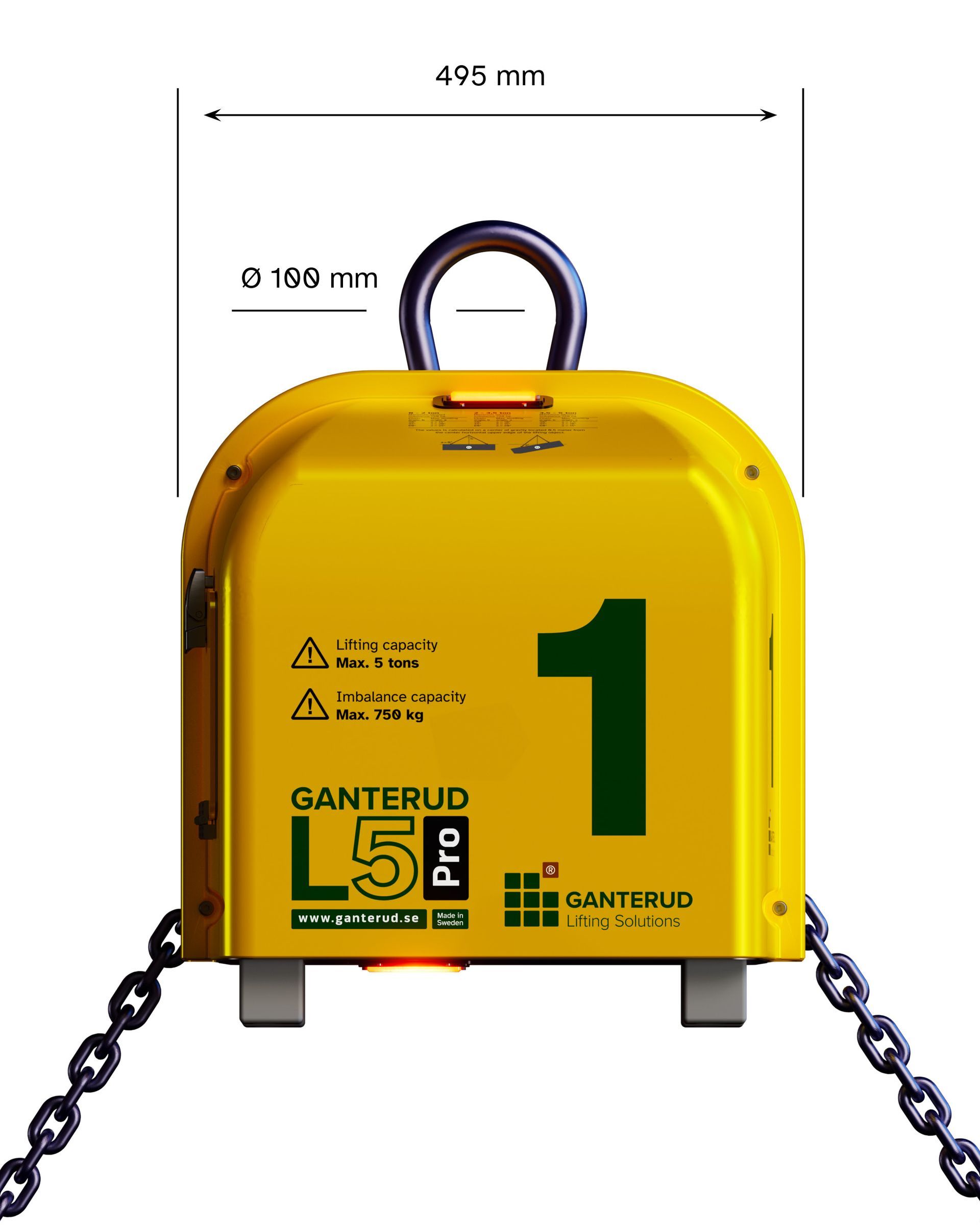

Ganterud L5 Pro Lifting yoke measurements

Environmental requirements

Operating temperature: -20°c - +40°c

Storage temperature: -20°c - +45°c

Relative Humidity (RH): 0 - 90 % during storage

IP rating: Ip65


Hand - held controller

Number of function keys: 7

Power output: 10 mW

Power supply: 3x1,5v AAA

Ip rating: Ip67


CERTIFICATION

CE marked product


Optional extra equipment

Protective cover

Extended chain

Extra batteries

Transport packaging
