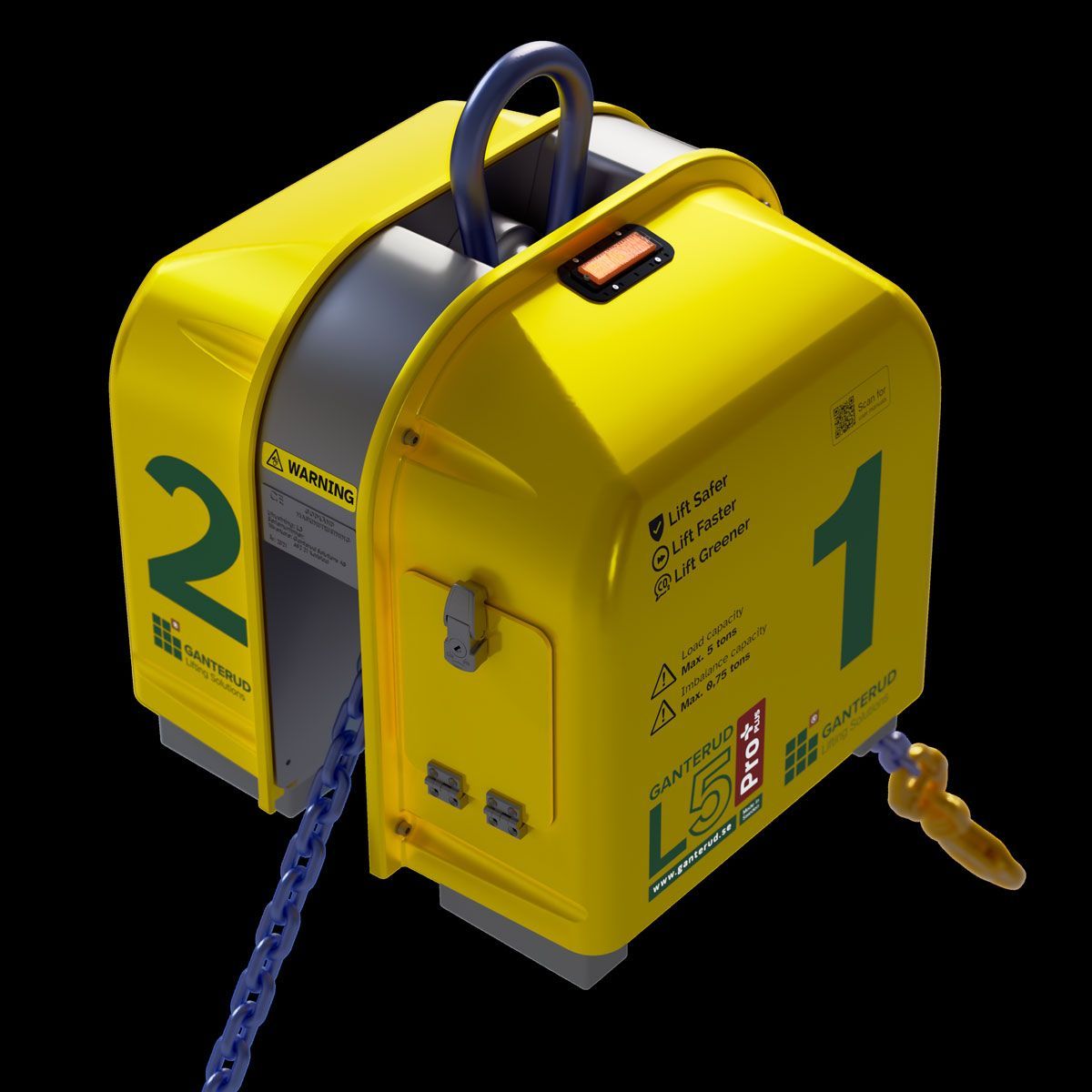

Ganterud L5 Pro Plus – Precision Levelling with Memory Function
Introducing the Ganterud L5 Pro Plus, an advanced levelling device built on the proven performance of the L5 Pro – now enhanced with an integrated memory function.
Designed for precision lifting, levelling and turning of loads up to 5 tonnes, the L5 Pro Plus enables operators not only to work safely and efficiently, but also to store and recall positions for repeatable operations.
This makes it an ideal solution for applications where the same lifting sequences are performed regularly, increasing both productivity and consistency on site.
Handling both light and heavy loads with ease
The Ganterud L5 Pro Plus leverages proven technology to handle loads ranging from 0 kg up to 5 tonnes with precision and control.
Whether working with prefabricated concrete elements, steel structures or industrial components, the device ensures smooth and stable handling throughout the lifting process.
Automatic leveling and efficient rotation
The auto-levelling feature allows the device to automatically locate the load’s centre of gravity when the chain wheel is released, enabling safe and accurate lifting.
With the integrated snatch block function, heavy components can be rotated quickly and securely, improving efficiency during installation.
Accurate and versatile object handling.
The reversible chain system provides up to 1.5 meters of movement per hook, allowing precise and flexible levelling across a wide range of objects.
Chain length can be adjusted to suit different applications, ensuring maximum versatility on site.
Memory Function – Repeat with Precision
The L5 Pro Plus introduces a powerful memory function, allowing operators to save and recall specific levelling positions.
- Store predefined positions during setup.
- Quickly return to the same position during repeated lifts.
- Improve consistency across installations.
- Reduce manual adjustments and operator dependency.
This feature is particularly valuable in repetitive workflows, such as precast installation or serial production environments, where precision and speed are critical.
Built for tough conditions
Designed for demanding environments, the L5 Pro Plus operates reliably in temperatures from –20 °C to +40 °C.
Its robust construction and IP65-rated electrical system ensure long-term durability and dependable performance.
Minimal maintenance required
The sturdy casing, along with the IP65-rated electrical system, means that the GANTERUD L5 Pro Plus is easy to clean.
Minimal service
The sturdy casing and IP65-rated electrical system facilitate easy cleaning. Regular maintenance involves only weekly battery charging, with status displayed on the yoke.
PRO FEATURES:
- Memory function for storing and recalling positions
- Release of chain wheel with remote control.
- Snatch block function with released chain wheel.
- Flash light warning when chain wheel is released.
- Auto levelling, finds the center of gravity automatically when chain wheel is released.
User-Friendly radio control
The IP67-rated remote control makes the GANTERUD L5 Pro Plus easy to operate, enhancing productivity and safety with its intuitive design.
INCREASES PRODUCTIVITY RATE MANY TIMES OVER
The GANTERUD L5 Pro Plus levels the objects it is lifting quickly and safely with the simple press of a button, reducing both expensive crane time and waiting times.
Built in Sweden. Trusted Worldwide.
Whether you’re installing precast concrete walls, steel beams, or industrial machinery, Ganterud technology saves valuable crane time and reduces manual handling risks.
For over three decades, Ganterud has designed and manufactured intelligent Levelling Devices for demanding industrial lifting.
Every unit is built for precision, durability, and ease of use – helping operators lift, level, and rotate heavy components safely and efficiently.
- Release of chain wheel with remote control
- Snatch block function
- Auto levelling when chain wheel is released
- Levelling light and heavy objects
- Runs on rechargeable batteries
- Sturdy, durable and reliable
- Increases productivity
- Strong and robust
- Minimal service
- Radio controled
Technical data
Lifting capacity: Max 5 metric tonnes
Load imbalance capacity: Max 750 kg
Max leveling length: 1,5 m
Max chain angle: 60°
Chain dimension: 30,5x10 mm
Total chain length: 3 m
Weight: 126 kg

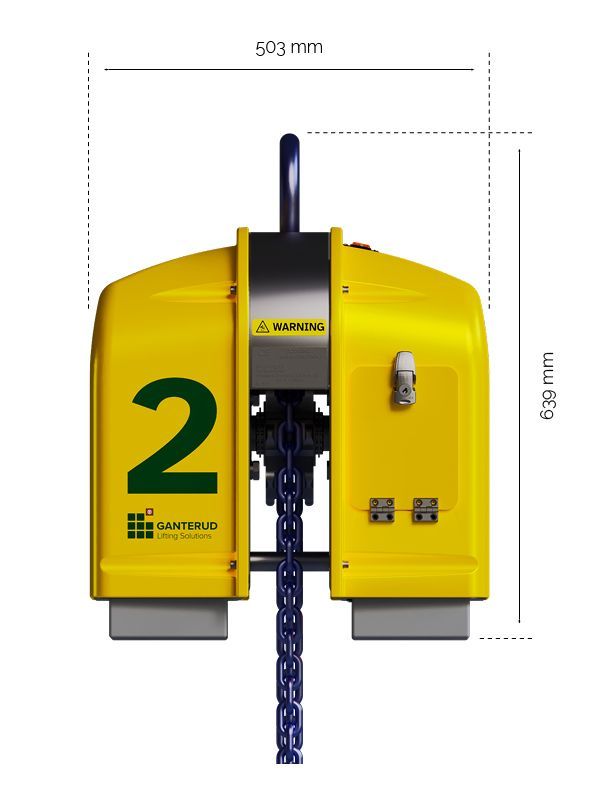

Height: 638 mm
Width: 503 mm

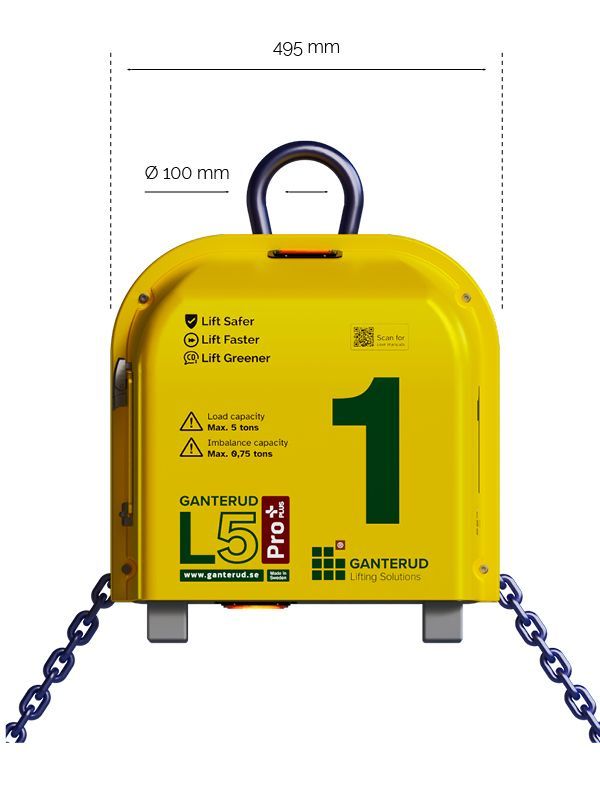

Depth: 495 mm
Control system
Radio range: 100 m unobstructed view
Current electrical motor: 24 VDC
Power at rest: 50 mA
Power max continuous: 24 A
Power peak: 30 A
Environmental requirements
Operating temperature: -20°c - +40°c
Storage temperature: -20°c - +45°c
Relative Humidity (RH): 0 - 90 % during storage
IP rating: Ip65
Hand - held controller
Number of function keys: 7
Power output: 10 mW
Power supply: 3x1,5v AAA
Ip rating: Ip67
CERTIFICATION
CE marked product
Optional extra equipment
Protective cover
Extended chain
Extra batteries
Transport packaging
