Ganterud L3
Robust, tried and tested technology in a new application
Radio-controlled precision levelling reduces installation time and increases safety. Capacity 3 tons
Levelling and handling of both light and heavy objects
The GANTERUD L3 lifting yoke uses both new as well as tried and tested technology to level and handle loads efficiently and safely with a high degree of precision. The lifting yoke can handle both light and heavy objects weighing from 0 kg up to 3 tonnes.
Precise and wide-ranging levelling and handling of various types of objects.
The GANTERUD L3 has a reversible stroke of up to 1.5 metres per hook.
Increases productivity rate many times over
The GANTERUD L3 levels and handles the objects it is lifting easily and safely with the simple press of a button, reducing both expensive crane time and waiting times.
Strong and robust
Thanks to its robust, tried and tested technology, combined with reliable electrical operation, the GANTERUD L3 is able to operate in temperatures ranging from -20°C to +40°C in demanding environments.
Sturdy, durable and reliable
The sturdy casing, along with the IP65-rated electrical system, means that the GANTERUD L3 is easy to clean.
Minimal service
Other than cleaning, the only thing you need to think about is charging the battery. The battery status is indicated on the yoke and, with normal use, it is sufficient to charge the battery once a week.
Radio control
With its user-friendly, IP67-rated remote control, the GANTERUD L3 is easy to operate.
INCREASES PRODUCTIVITY RATE MANY TIMES OVER
The GANTERUD L3 levels the objects it is lifting quickly and safely with the simple press of a button, reducing both expensive crane time and waiting times.
Technical data
Lifting capacity: Max 3 metric tons
Load imbalance capacity: Max 500 kg
Max leveling length: 1,5 m
Max chain angle: 60°
Chain dimension: 30,5x10 mm
Total chain length: 3 m

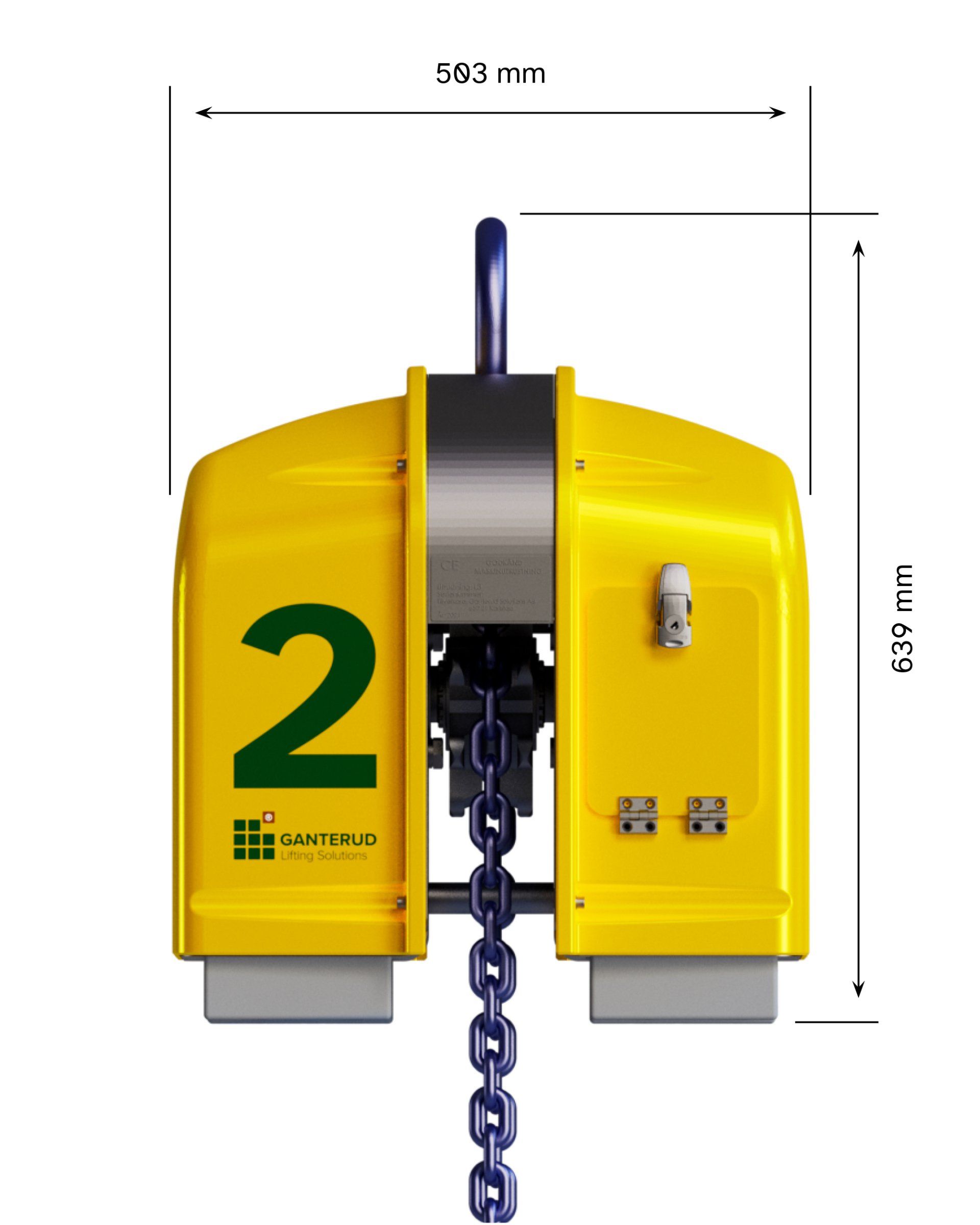

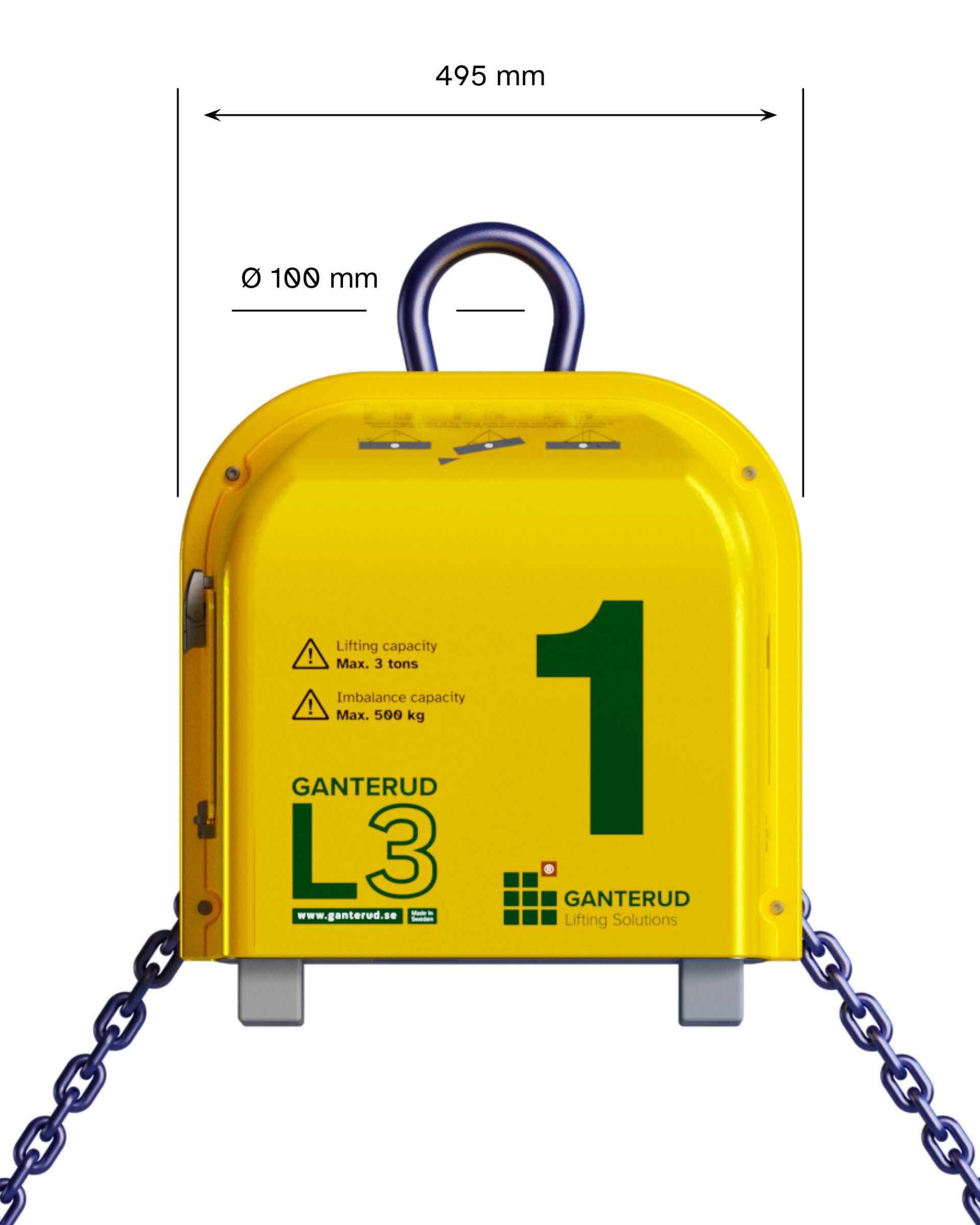

Weight: 126 kg
Height: 638 mm
Width: 503 mm
Depth: 495 mm
Control system
Radio range: 100 m unobstructed view
Current electrical motor: 24 VDC
Power at rest: 50 mA
Power max continuous: 24 A
Power peak: 30 A
Environmental requirements
Operating temperature: -20°c - +40°c
Storage temperature: -20°c - +45°c
Relative Humidity (RH): 0 - 90 % during storage
IP rating: Ip65

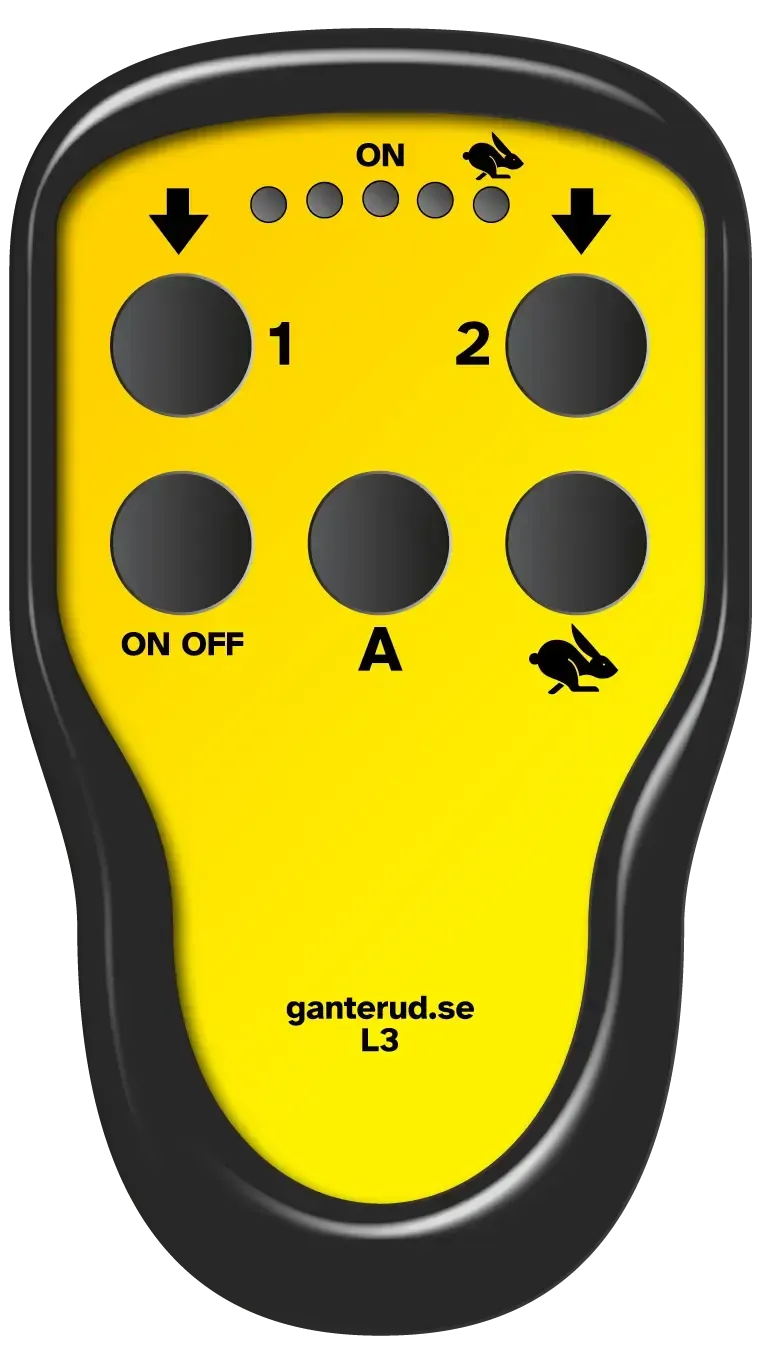

Hand - held controller
Number of function keys: 5
Power output: 10 mW
Power supply: 3x1,5v AAA
Ip rating: Ip67
CERTIFICATION
CE marked product
Optional extra equipment
Protective cover
Extended chain
Extra batteries
Transport packaging
