Introducing the Ganterud L10 Heavy Duty: a precision levelling device for versatile and demanding applications
Discover the Ganterud L10 HD, a robust levelling device that combines both new and proven technology for new applications. This radio-controlled precision levelling device minimizes installation time and enhances safety, with a capacity of up to 10 tonnes.
Handling both light and heavy loads with ease
The GANTERUD L10 HD levelling device combines both new and proven technology to handle loads efficiently and safely, accommodating objects from 0 to 10 tonnes.
Accurate and versatile object handling.

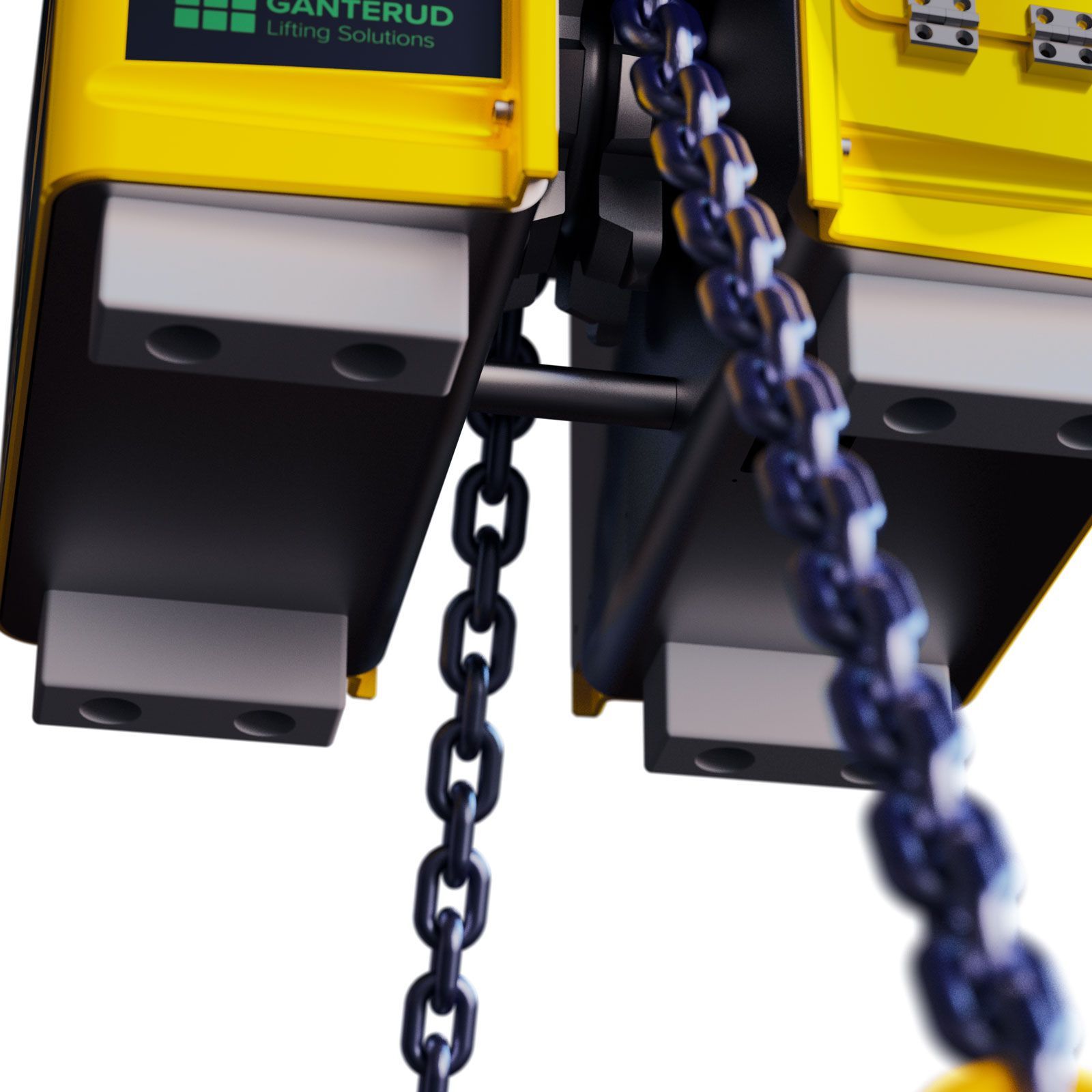

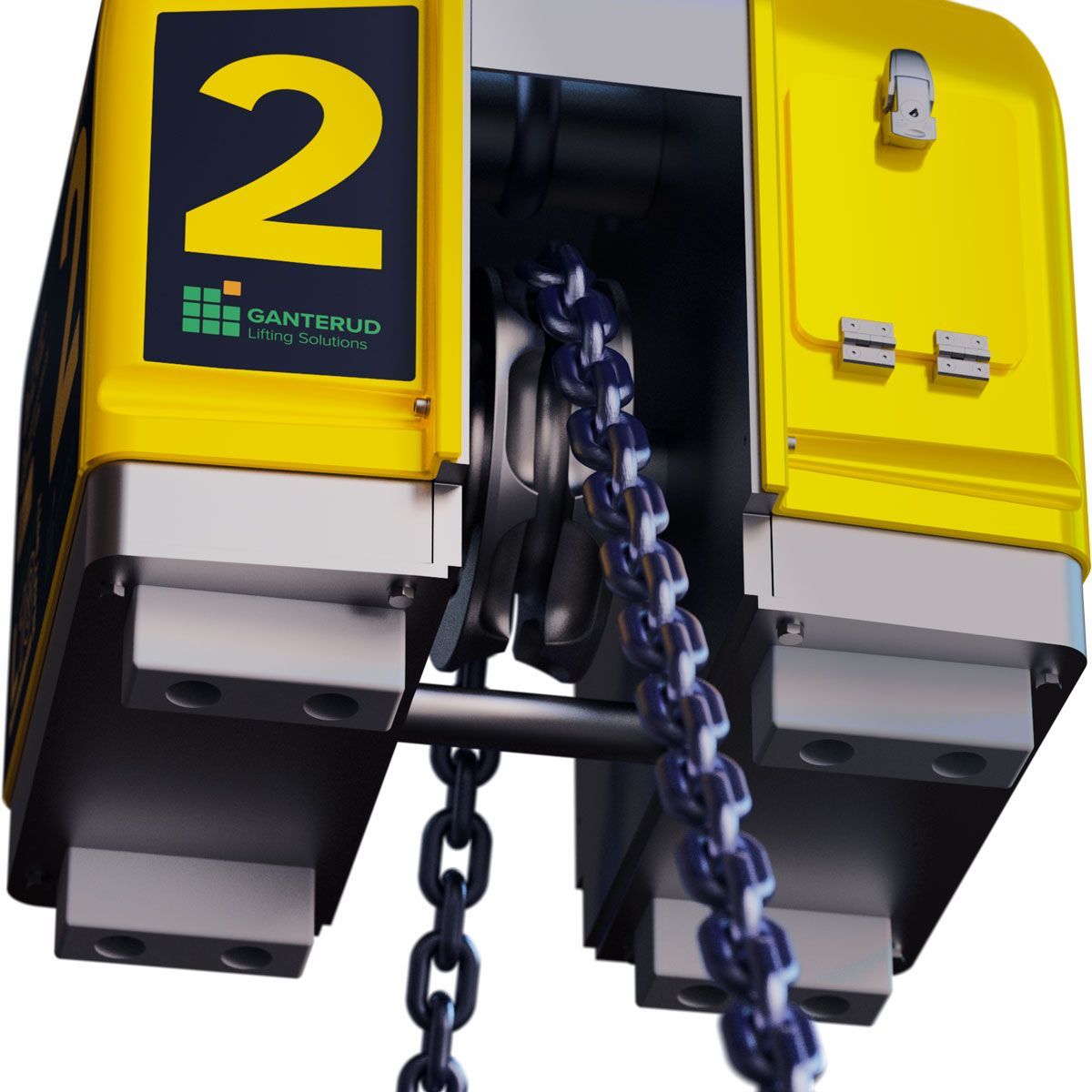

The GANTERUD L10 HD features a reversible chain of up to 1.5 meters per hook, ensuring precise and flexibel levelling and handling for wide range of objects. The length of the chain can be adjusted as needed.
Enhanced productivity
The GANTERUD L10 HD improves productivity by enabling safe and easy object levelling at the push of a button, reducing both crane operation costs and downtime.
Built for tough conditions
With its robust and proven technology, the GANTERUD L10 HD delivers reliable performance in temperatures from -20°C to +40°C, making it ideal for demanding environments.
Minimal maintenance required
The sturdy casing, along with the IP65-rated electrical system, make the GANTERUD L10 HD easy to clean and highly resistant to dust and water.
Minimal service
The sturdy casing and IP65-rated electrical system allows for easy cleaning. Routine maintenance is limited to weekly battery charging, with status conveniently displayed on the levelling device.

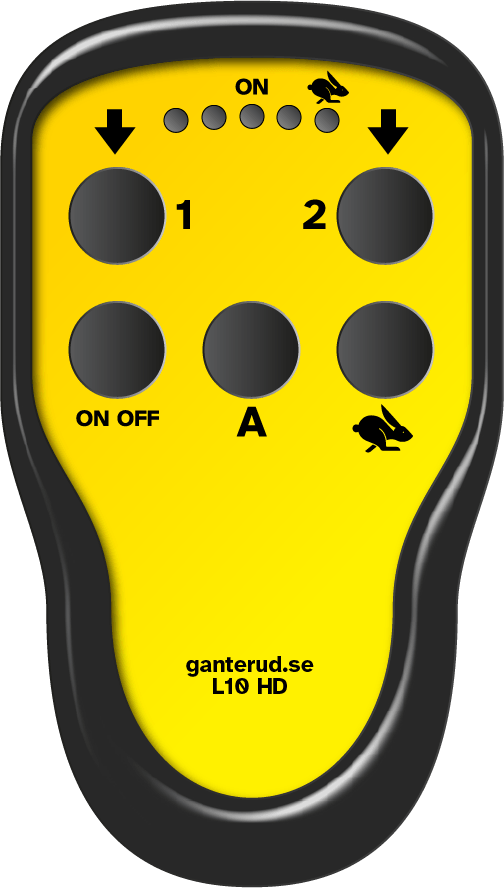

Radio Control
With its user-friendly, IP67-rated remote control, the GANTERUD L10 HD is easy and safe to operate.
Increases productivity many times over
The GANTERUD L10 HD levels lifted objects quickly and safely at the push of a button, reducing both costly crane time and downtime.
Technical data
Load capacity: Max 10 tons
Load imbalance capacity: Max 4 tons
Max leveling length: 1,5 +1,5 m
Max chain angle: 60°
Chain dimension: 16x48 mm
Total chain length: 3 m
Weight: 180 kg

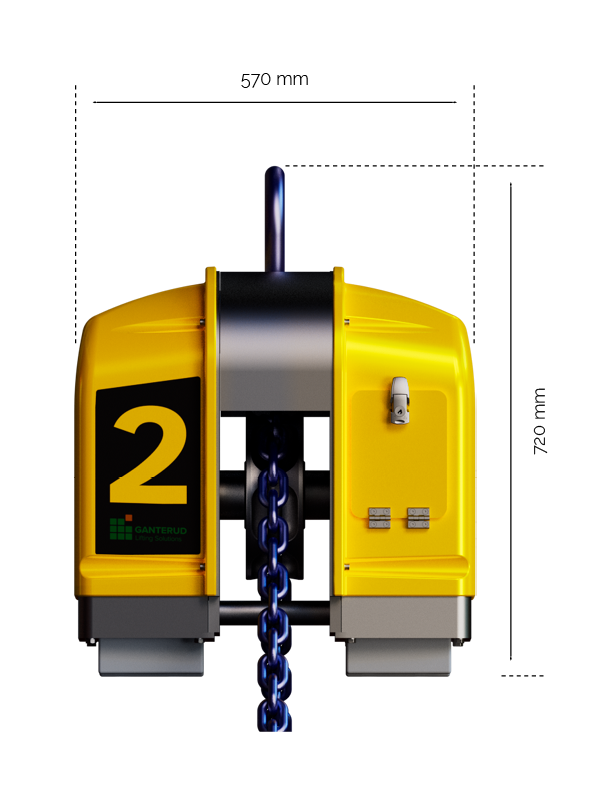

Height: 720 mm
Width: 500 mm

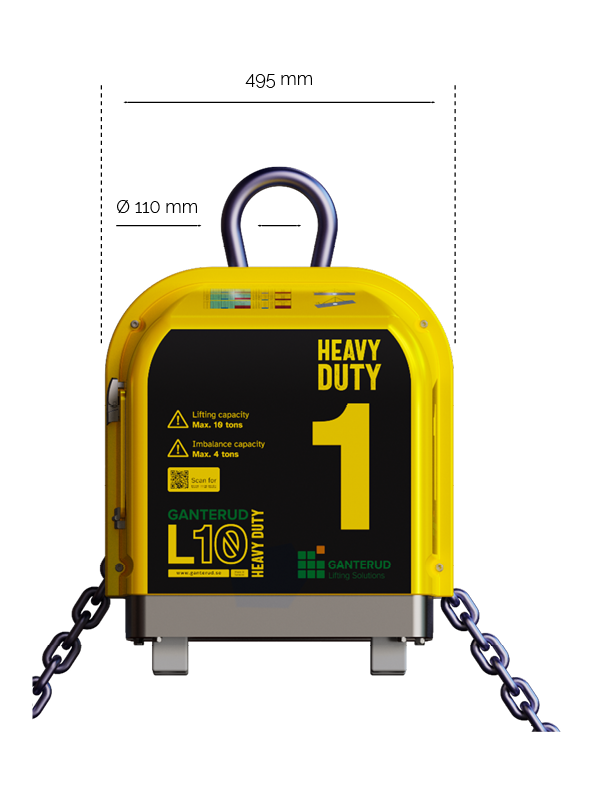

Depth: 495 mm
Control system
Radio range: 100 m unobstructed view
Current electrical motor: 24 VDC
Power at rest: 50 mA
Power max continuous: 24 A
Power peak: 30 A
Environmental requirements
Operating temperature: -20°c - +40°c
Storage temperature: -20°c - +45°c
Relative Humidity (RH): 0 - 90 % during storage
IP rating: Ip65
Hand - held controller
Number of function keys: 5
Power output: 10 mW
Power supply: 3x1,5v AAA
Ip rating: Ip67
CERTIFICATION
CE marked product
Optional extra equipment
Protective cover
Extended chain
Extra batteries
Transport packaging
